Original price was: $5,995.00.$3,995.00Current price is: $3,995.00.
Used for trade shows and testing, some blemishes, carrying case may be scratched – 1 year warranty – non-returnable

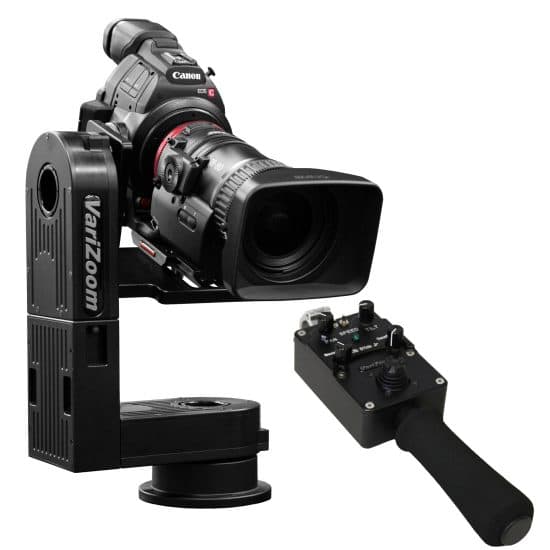

The newest addition to the CinemaPro family, the CP Micro comes in at roughly half the size & weight of the JR and one-third the original CP. Despite its small form factor, the CP Micro is a real powerhouse, utilizing a high-efficiency, low-mass, enclosed drivetrain that will literally make heads spin. Capable of moving at an imperceptible creep up to 80 degrees/second, the CP Micro is also a true motion control head with frame-accurate capability and full compatibility with our existing and future line of control modules, including wheels, pan bars, jibstick, and advanced consoles (single and multi-head).Item includes: CPM head, Jibstick Jr controller, case, cables, power supply. Customer must specify mount type: Mitchell or 100mm ball
Out of stock
Used at trade shows, may have blemishes, case may be scratched – 1 year warranty – non-returnable
Using the same control system as our acclaimed CP and CP JR heads, the CP Micro offers the same frame-accurate, fully enclosed drivetrain, high-performance design at a much more affordable price and in a much smaller and lighter package. Ideal for Canon C100 & C300, Sony FS5, Sony A7RII, RED Raven, DSLRs, and any other compact cameras under 12lbs, the CP Micro sacrifices nothing in quality but is tailored to meet the needs of shooters requiring a smaller and lighter package.
The CP Micro works with all of the existing CinemaPro control devices, including pan bars, hand wheels, advanced console, new “River” multi-head 28-axis console, Jibstick Pro, and Jibstick JR.
Standard features:
-Dynamic speed control from an imperceptible creep up to 80 degrees/second
-Maintenance-free, high-power drivetrain holds camera position
-Cable pass-thru ports on pan and tilt rotators
-Native frame-accurate motion control capability (repeatability depends on controller)
-Independent speed and direction controls
-Smoothing adjustment
-Thumb joystick
-Easily adjustable single-lock camera platform
-User choice of Mitchell mount or 100mm ball mount at no charge
-Flexible mounting base allows field change of mount type with no special tools
-Lemo connectors for power and control
-AC power supply with 25′ cable
-25′ control cable
-Hard carrying case
-2 year warranty
Optional features:
-3″ riser block for additional camera clearance (field-installable)
-Handwheels
-Pan Bars
-Pro Jibstick joystick controller
-Programmable console controller
-Extension cables 50′, 100′ or custom length
-Wireless control up to 1 mile
Built upon a legacy of exceptional quality at rational prices, the CP Micro will be perfect for any jib, remote pan/tilt, or multi-camera studio control system.
| Weight | 35 lbs |
|---|---|
| Dimensions | 26 × 20 × 9 in |
| Height | 13" |
| Width | 4" |
| Depth | 6" |
| Weight | 7 lbs |
| Camera Clearance | Vertical – Camera pointing straight down/up: 7" from center of cam plate to base. |
| Max Cable Extension | 300 feet, longer with optional power booster |
| Camera weight | 12 lbs |
| Pan/Tilt speed | 80 degrees/second (limited for optimal performance) |
| Mechanical travel | Limited only by cable twist |
| Power Requirements | 24VDC regulated, 4A max |
| Warranty | 1 year |
| Returns | 20% restocking fee within 30 days of purchase |
